Robust & Energy-Efficient Piston Compressors
Piston compressors offer several advantages compared to other compressor types, including screw and turbo compressors. One of their key benefits is their highly durable and dependable technology.
Our piston compressors are designed for outstanding energy efficiency and can easily adapt to varying process requirements. Thanks to their precise control capabilities, they can operate with different suction and discharge pressures while also providing adjustable flow rates.

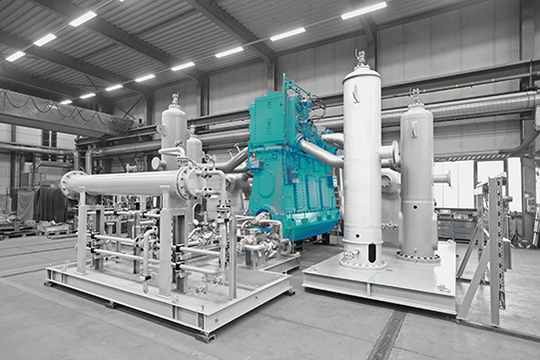

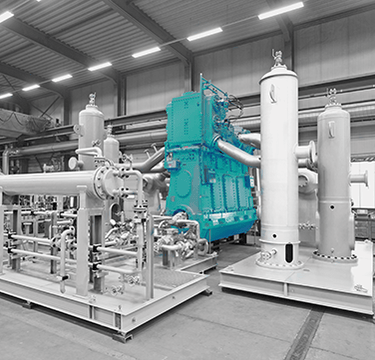

Vertical Design
Ideal for dry running due to low wear of the guide elements
labyrinth compression for precise guidance of piston and piston rod
oil-free or lubricated version
Number of cranks: 1, 2, 3, 4, 5
Number of levels: 1 to 8
Maximum pressure: 1,000 bar
Power range: max. 6,500 kW
Volume flows: max. 50,000 Nm³/h

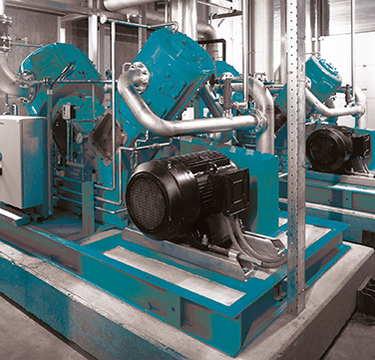

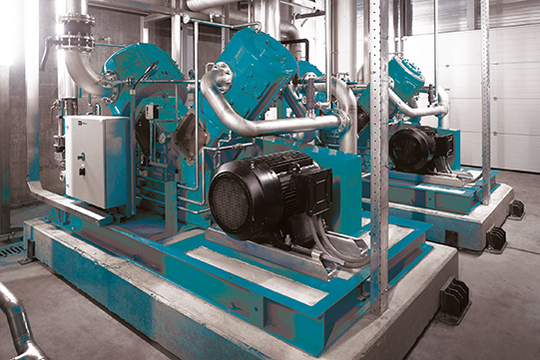

V-Shaped Design
balanced mass forces of the first order
only horizontal mass forces of the second order
small space requirement
low foundation load
oil-free or lubricated version
Number of cranks: 1, 2
Number of levels: 1 to 4
Maximum pressure: 400 bar
Power range: max. 1,000 kW
Volume flows: max. 4,000 Nm³/h

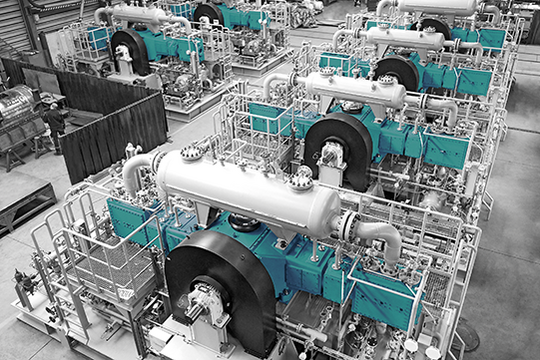

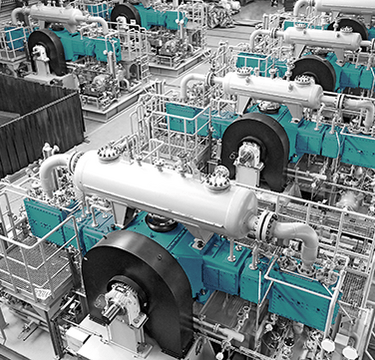

Horizontal Design
balanced mass forces
excellent smooth running
Short maintenance times due to excellent accessibility
low foundation loads
oil-free or lubricated version
Number of cranks: 1, 2, 4, 6, 8
Number of levels: 1 to 8
Maximum pressure: 1,000 bar
Power range: max. 30,000 kW
Volume flows: max. 100,000 Nm³/h
